6502 Assembly Programming Guide
This guide covers the fundamentals of programming the 6502 CPU, commonly found in the NES, Commodore 64, Apple II, and other retro hardware. It includes information on registers, flags, memory addressing, arithmetic, comparisons, branching, subroutines, labels, and more.

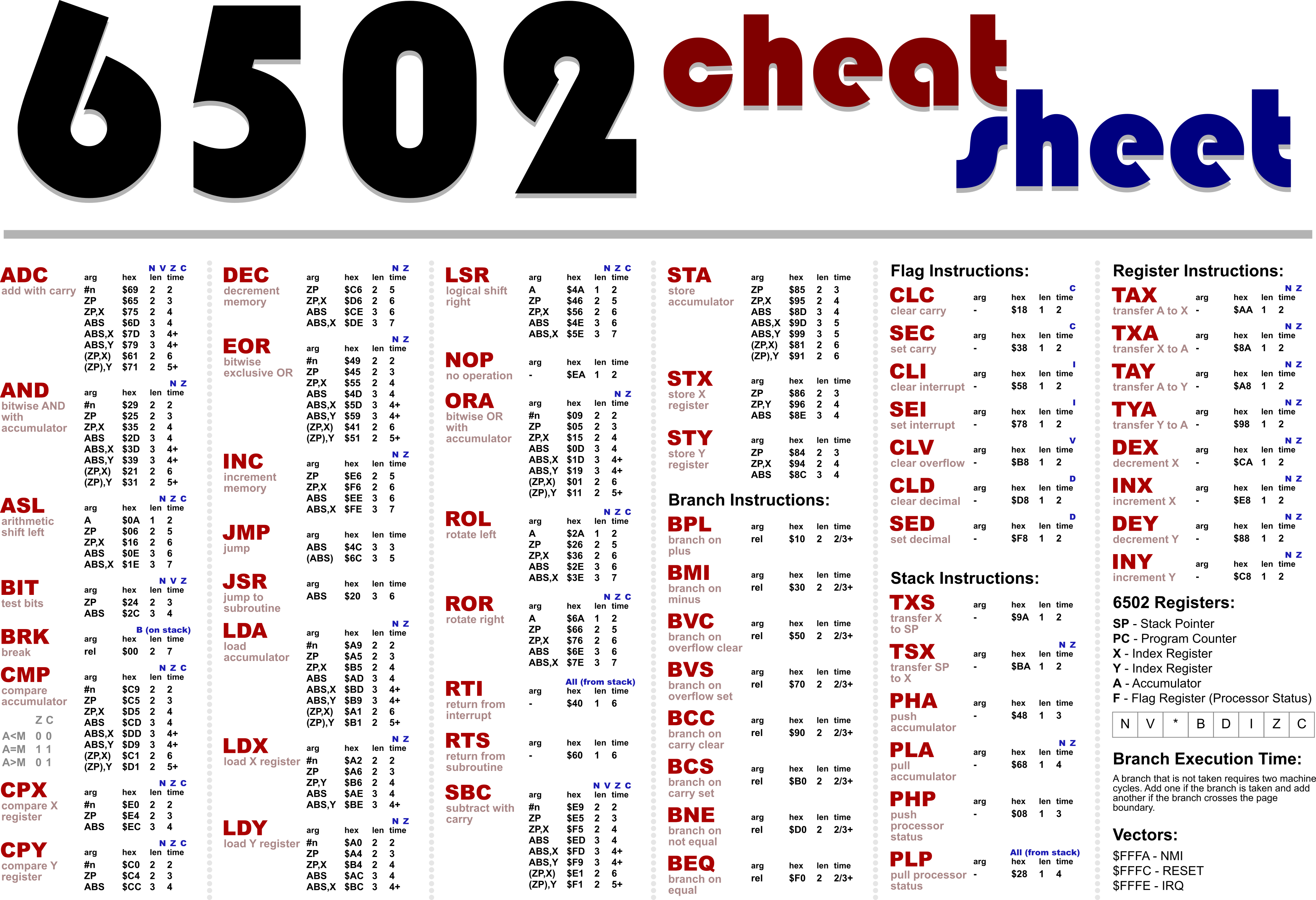

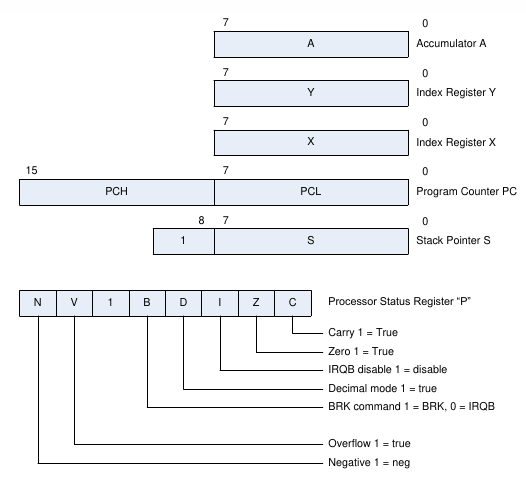

Registers
| Register | Description |
|---|
| A | Accumulator — for arithmetic, logic, and data transfer. |
| X | Index register — for loops, offsets, and memory indexing. |
| Y | Index register — similar to X, with some different addressing modes. |
| SP | Stack Pointer — points to stack in page $0100. |
| PC | Program Counter — current instruction location. |
| P | Processor Status — 8-bit flag register (see below). |
Status Flags (Processor Status Register)
| Flag | Bit | Name | Meaning |
|---|
| N | 7 | Negative | Set if bit 7 of the result is 1 (signed negative). |
| V | 6 | Overflow | Set if signed overflow occurs. |
| — | 5 | (Unused) | Always set to 1. |
| B | 4 | Break | Set when BRK instruction runs. |
| D | 3 | Decimal | Not used on NES. (Decimal mode.) |
| I | 2 | Interrupt | Disable (1) or enable (0) IRQ. |
| Z | 1 | Zero | Set if result is zero. |
| C | 0 | Carry | Set if carry/borrow occurs in math. |
Memory Addressing Modes
| Mode | Example | Description |
|---|
| Immediate | LDA #$10 | Load constant value $10. |
| Zero Page | LDA $00 | Access memory in page 0 ($0000-$00FF). |
| Zero Page,X | LDA $00,X | Zero page plus X offset. |
| Absolute | LDA $1234 | Load from full 16-bit address. |
| Absolute,X | LDA $1234,X | Address + X offset. |
| Absolute,Y | LDA $1234,Y | Address + Y offset. |
| Indirect | JMP ($1234) | Jump to address stored at $1234/$1235. |
| Indexed Indirect (X) | LDA ($20,X) | Pointer = $20 + X, then fetch. |
| Indirect Indexed (Y) | LDA ($20),Y | Fetch pointer from $20, then add Y. |
| Relative | BEQ Label | Branch relative to PC (for conditionals). |
Arithmetic and Logic
Load and Store
LDA #$10 ; Load 16 into A
LDX #$00 ; Load 0 into X
LDY $00 ; Load value from memory $00 into Y
STA $0200 ; Store A into memory address $0200
Math
LDA #$05 ; A = 5
ADC #$03 ; A = A + 3 + Carry (use CLC beforehand if needed)
SEC ; Set carry for subtraction
LDA #$08 ; A = 8
SBC #$02 ; A = A - 2 - (1 - Carry) = 6
Increment/Decrement
INX ; X = X + 1
INY ; Y = Y + 1
DEX ; X = X - 1
DEY ; Y = Y - 1
Bitwise Logic
LDA #%10101010 ; A = 170
AND #%11001100 ; A = A AND 204 → Result is #%10001000
ORA #%00001111 ; A = A OR 15
EOR #%11111111 ; A = A XOR 255 (bit flip)
Comparisons and Branching
Compare Registers
LDA #$05
CMP #$05 ; Compare A with 5 → Sets Z flag if equal
LDX #$03
CPX #$04 ; Compare X with 4
LDY #$08
CPY #$07 ; Compare Y with 7
Branch Instructions
| Instruction | Description |
|---|
| BEQ | Branch if Equal (Z=1) |
| BNE | Branch if Not Equal (Z=0) |
| BCS | Branch if Carry Set (C=1) |
| BCC | Branch if Carry Clear (C=0) |
| BMI | Branch if Minus (N=1) |
| BPL | Branch if Positive (N=0) |
| BVS | Branch if Overflow Set (V=1) |
| BVC | Branch if Overflow Clear (V=0) |
Example Loop:
LDX #$05 ; X = 5
Loop:
DEX ; X = X - 1
BNE Loop ; If X ≠ 0, loop back
Subroutines and Labels
Define Labels:
Start:
LDA #$01
STA $0200
JMP Start ; Infinite loop
Subroutines:
JSR MySub ; Jump to subroutine
; ...do other stuff...
MySub:
LDA #$FF
STA $00
RTS ; Return from subroutine
Stack Operations
| Instruction | Description |
|---|
| PHA | Push A onto stack |
| PLA | Pull A from stack |
| PHP | Push Processor Status |
| PLP | Pull Processor Status |
| JSR | Jump to subroutine (Push return address) |
| RTS | Return from subroutine |
| BRK | Force interrupt (Push PC+2 and status) |
| RTI | Return from interrupt |
Example: Save and Restore Registers
PHA ; Save A
TXA
PHA ; Save X
TYA
PHA ; Save Y
; Subroutine logic here
PLA ; Restore Y
TAY
PLA ; Restore X
TAX
PLA ; Restore A
RTS
Miscellaneous Instructions
- NOP — No operation (does nothing; placeholder).
- CLC / SEC — Clear/Set Carry flag.
- CLD / SED — Clear/Set Decimal flag (not used on NES).
- CLI / SEI — Clear/Set Interrupt Disable.
- CLV — Clear Overflow flag.
Example Program: Fill Memory with a Value
LDX #$00 ; Start index at 0
LDA #$FF ; Value to write
Loop:
STA $0200,X ; Store value at $0200 + X
INX ; Increment index
CPX #$10 ; Compare X to 16
BNE Loop ; If X ≠ 16, continue looping
BRK ; End (break)
Resources
6502 Instruction Set Guide (.pdf): https://forums.atariage.com/applications/core/interface/file/attachment.php?id=888275
